The AetherBox Two is a robust IP65-rated double universes CRMX transceiver, designed for professional use in any setting, whether it be indoor or outdoor, on stages or sets.

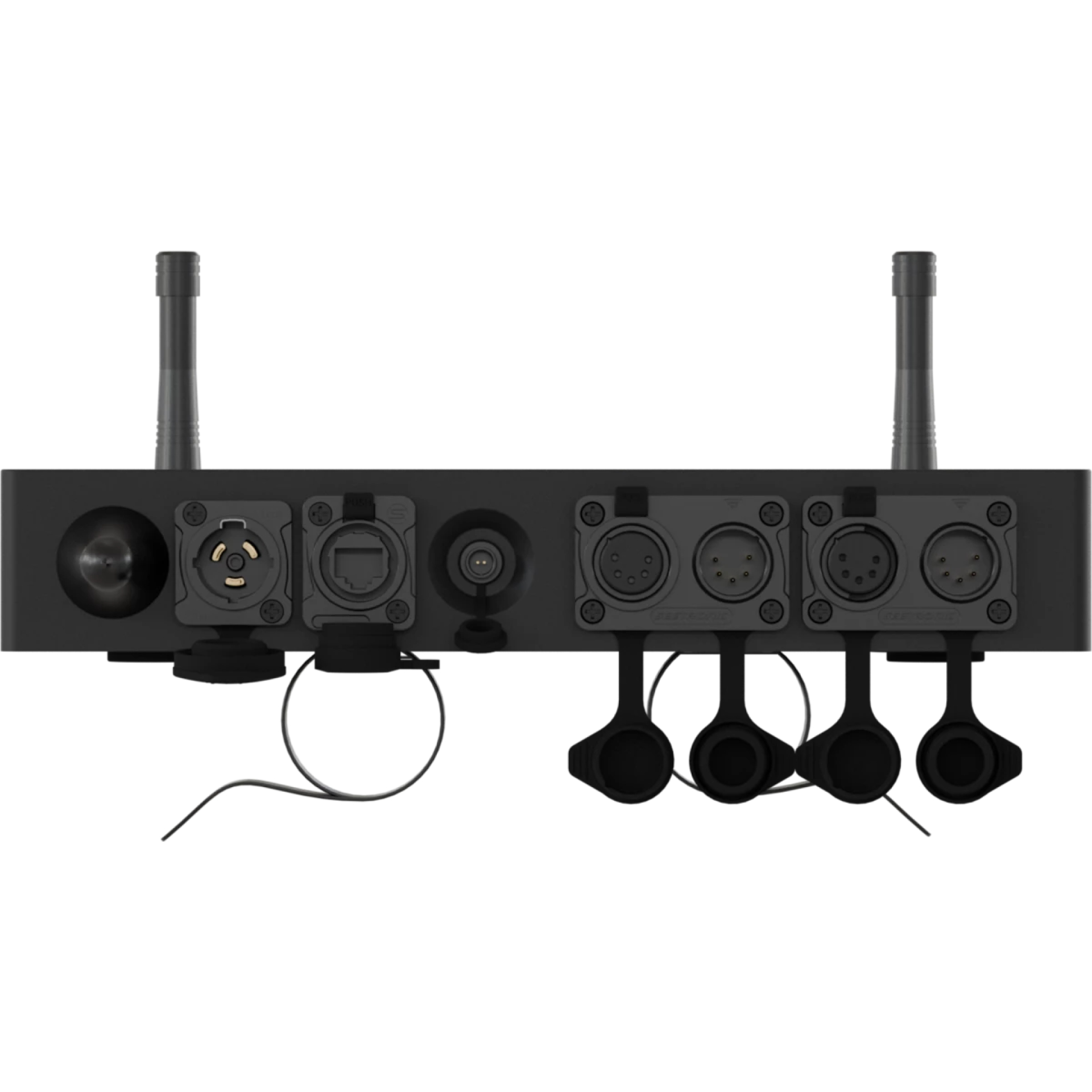

It boasts an extensive range of connectivity options including XLR 5p in/out, Ethernet for sACN and ArtNet, as well as Wi-Fi and Bluetooth, while supporting CRMX transmission protocol.

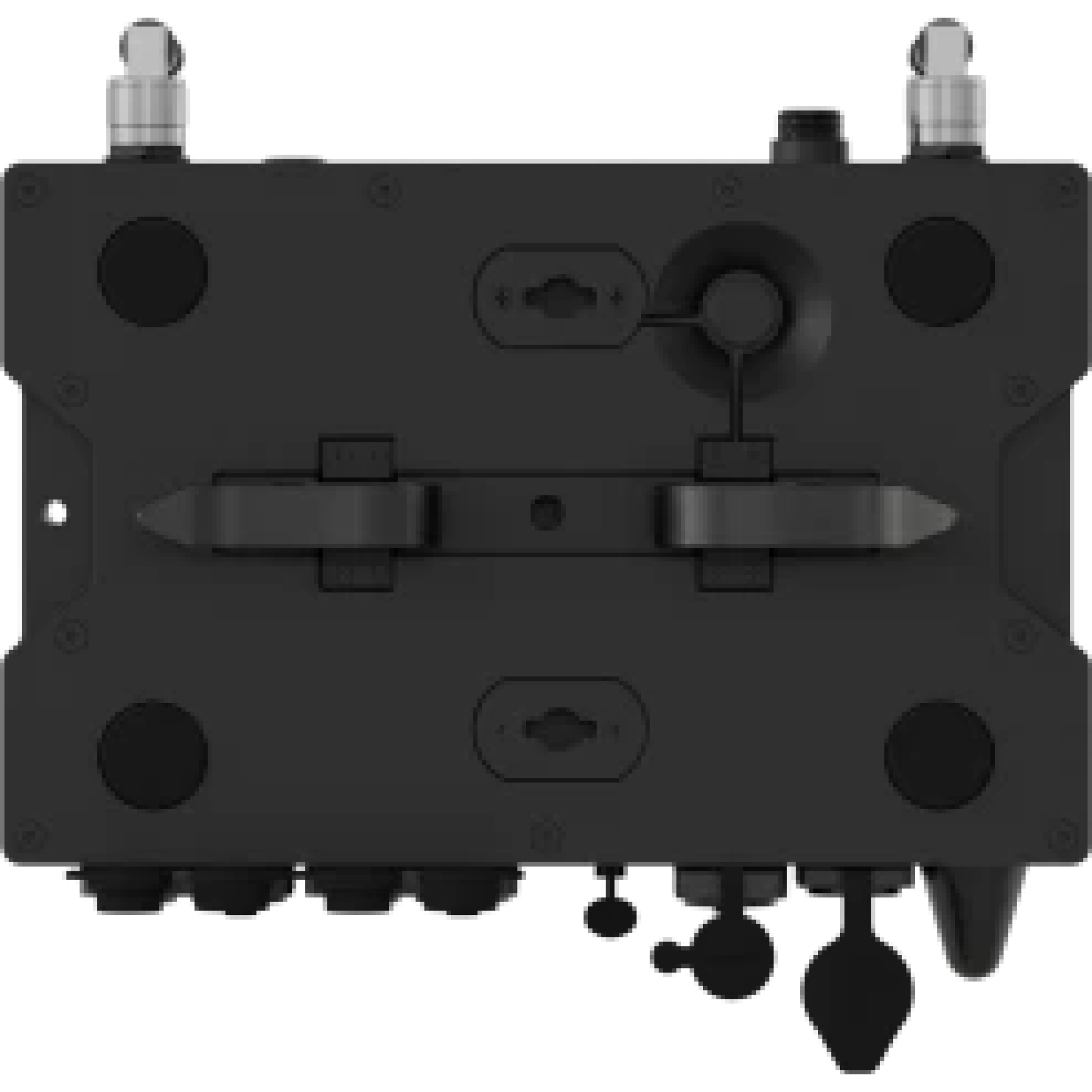

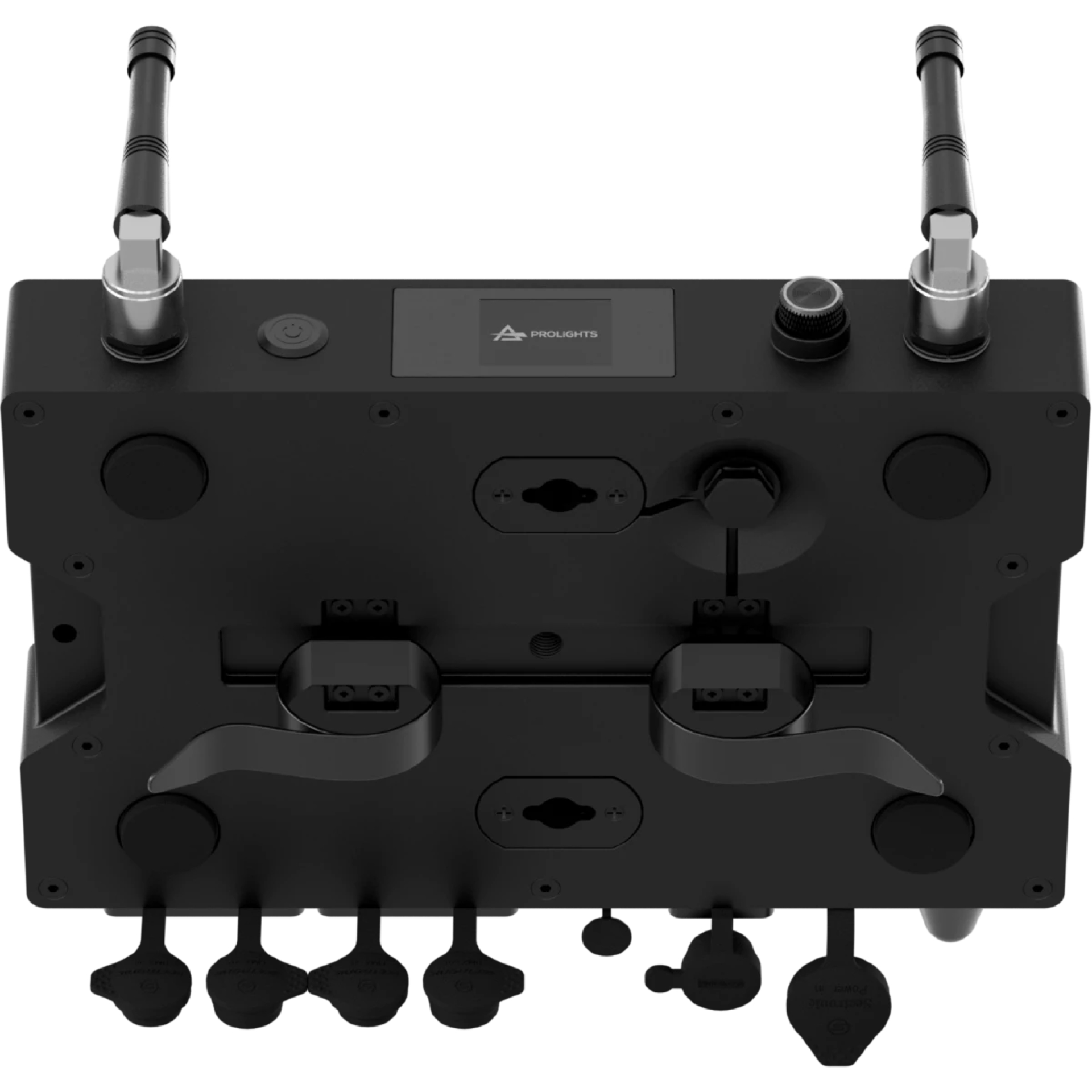

Constructed from die-cast aluminum, the chassis offers water and dust proof protection. It also provides versatile mounting solutions, such as rack mounting, truss mounting with velcro strings, camlock for easy hanging via omega brackets, and M10 and ⅜ threads for additional anchoring options.

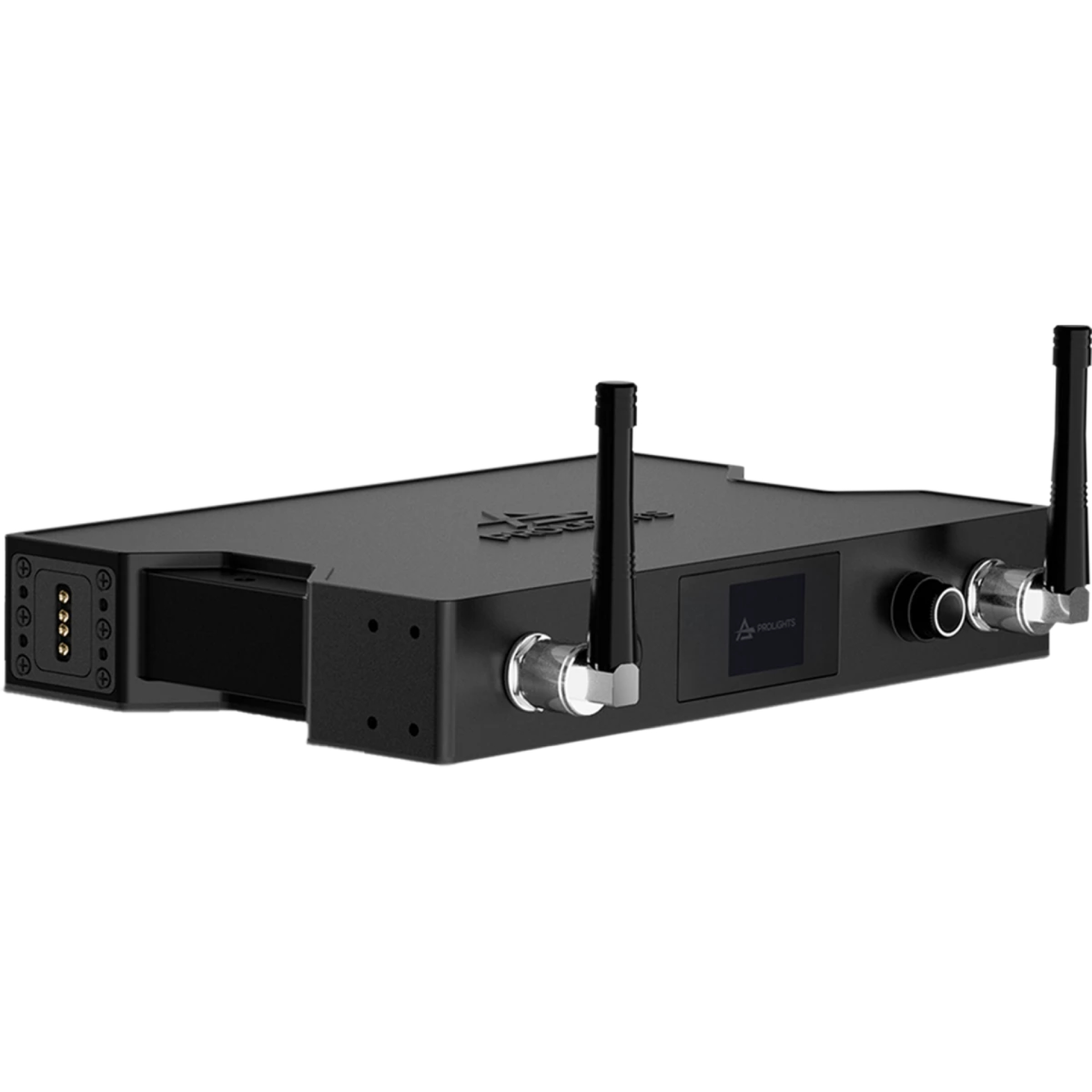

The unit is adaptable in terms of power sources, accommodating mains power through a True1 connector, DC12V input, POE and V-lock battery operation via an adapter plate. For user interaction, it features a color display and pushable encoders, allowing for easy access to advanced configuration settings.
Protocols: DMX512, RDM, ArtNet, sACN, CRMX, Bluetooth
DMX channels: 1024 channel
Wireless Control: included, 2 x LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
Other: 1 push encoder
Other: Contains 2 independent TimoTwo modules, each capable of transmitting one CRMX universe (512 ch) - Total: 2 universes (1024 ch) over Ethernet input
Other: Transmission range up to 80 meters with the included AEB2DBA90D antenna in open field
