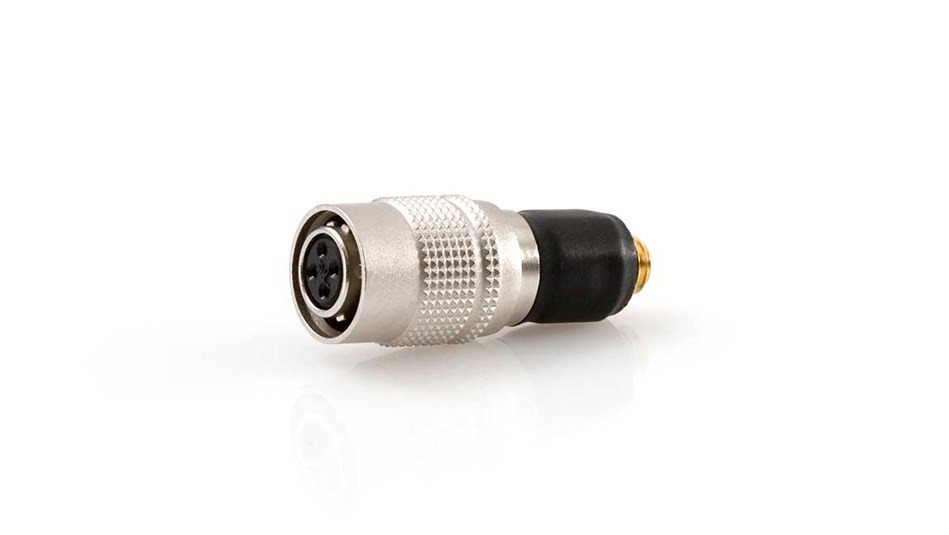

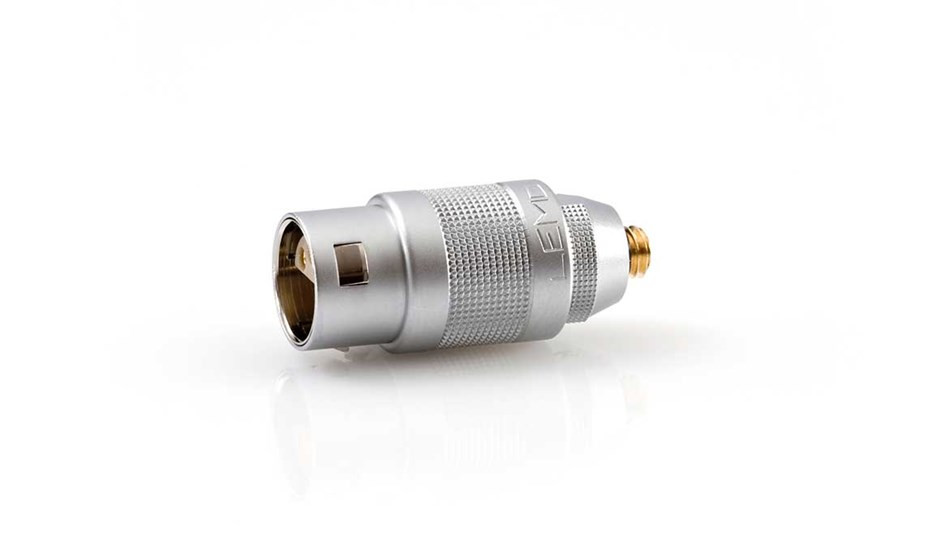

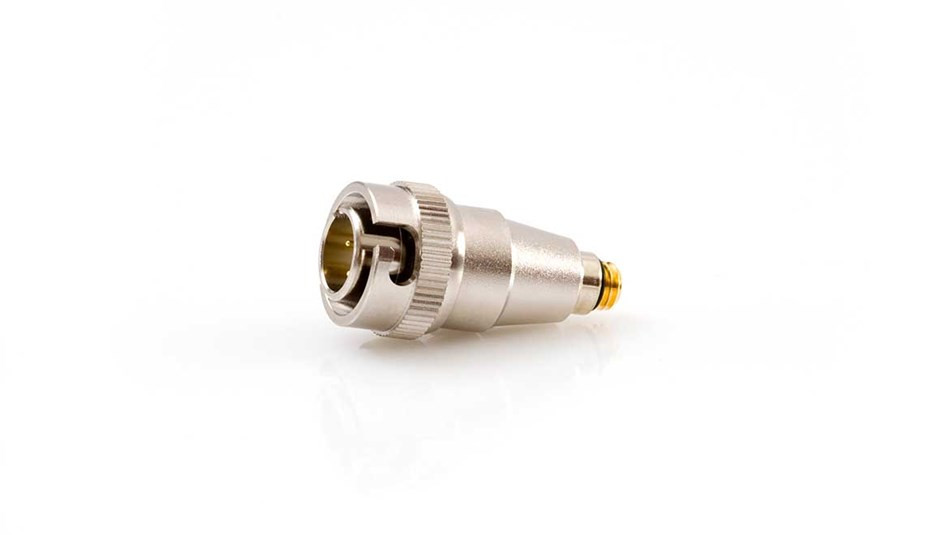

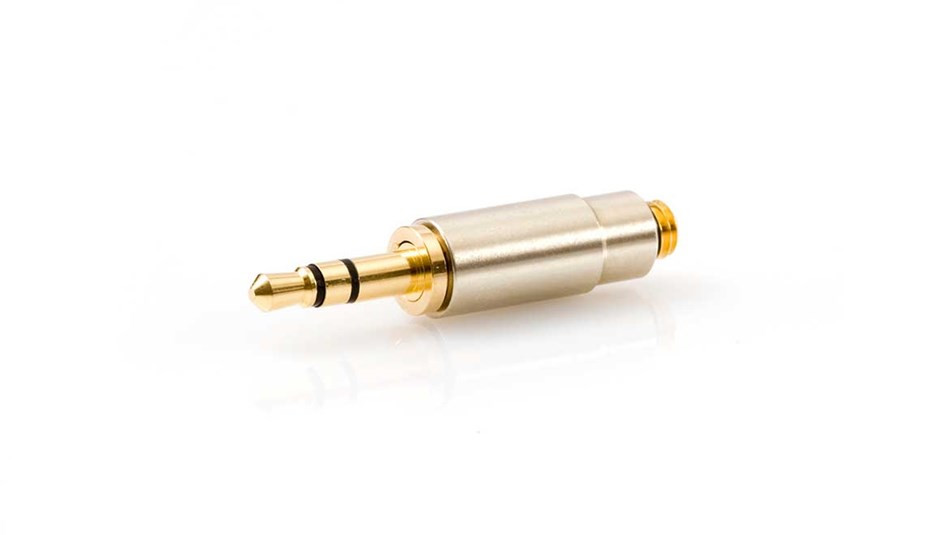

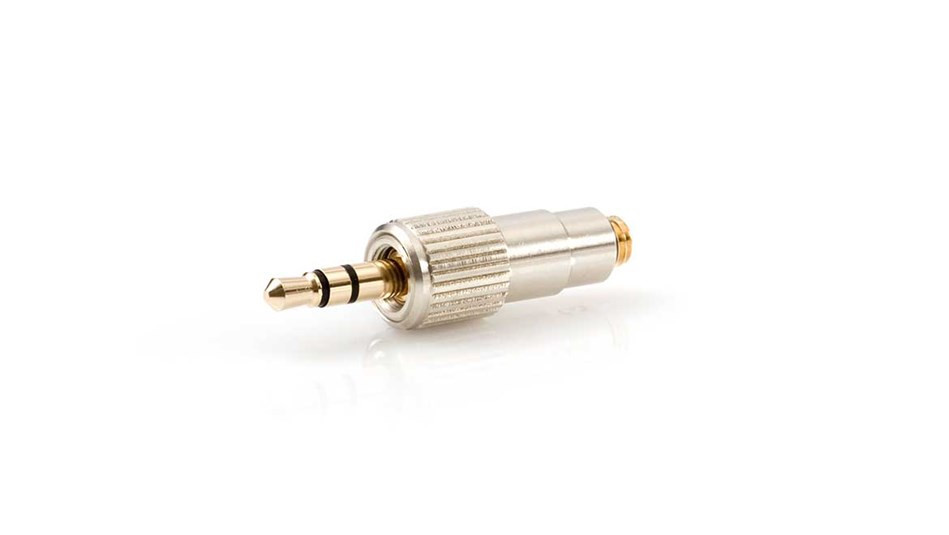

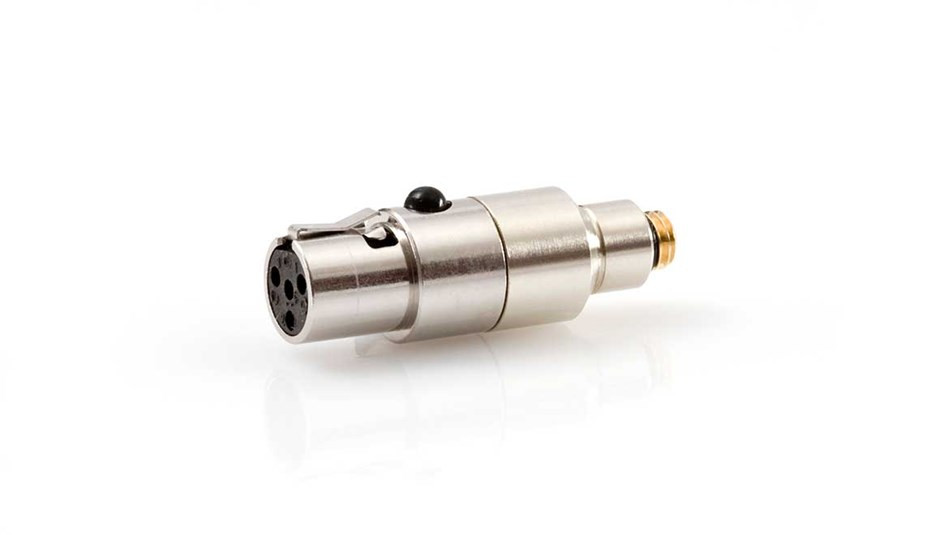

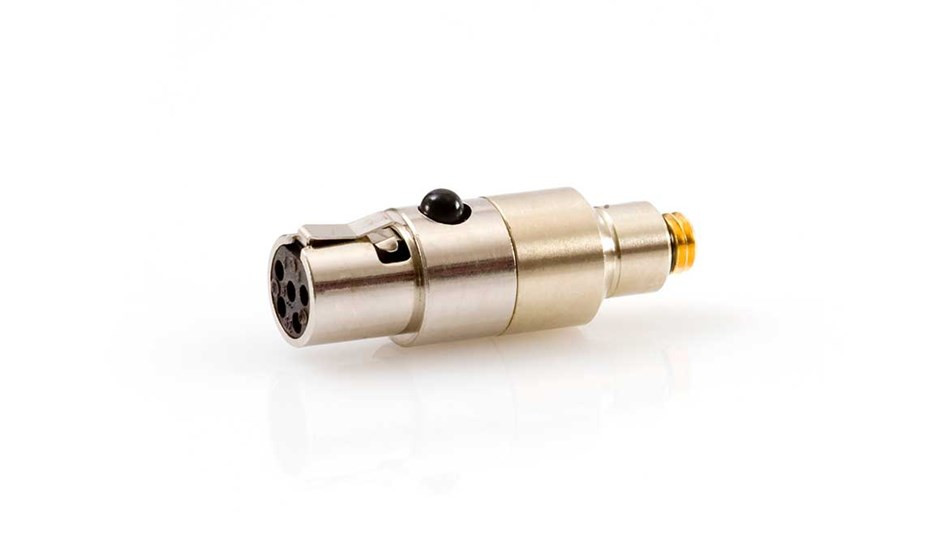

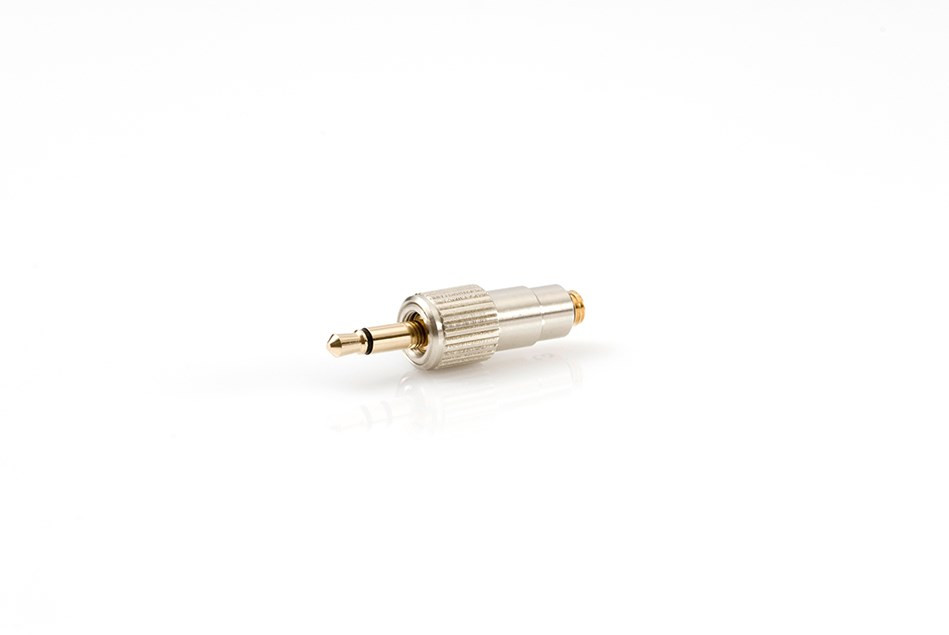

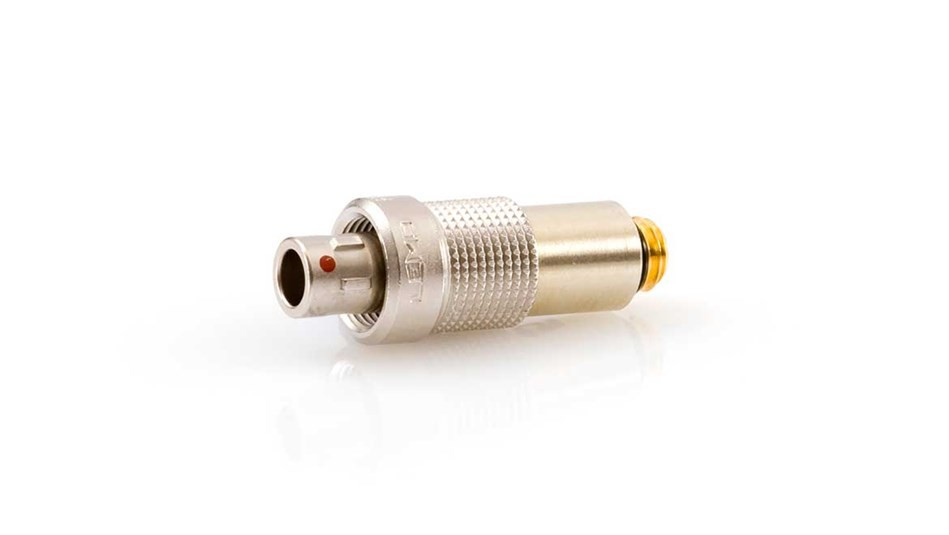

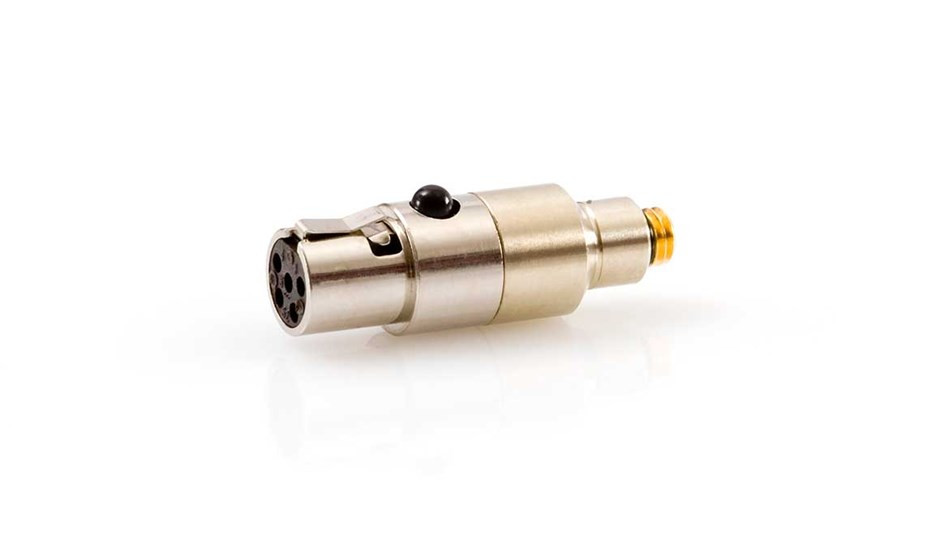

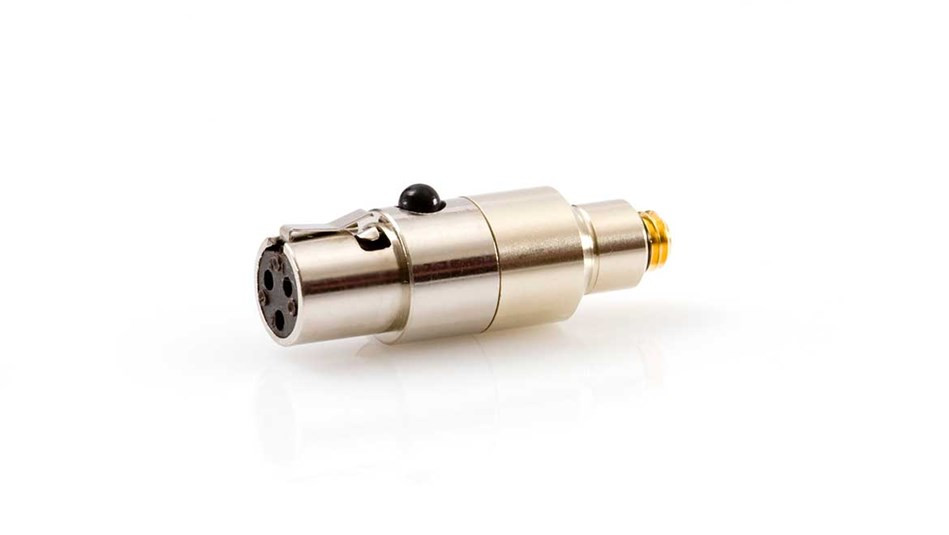

With MicroLock, you’re no longer tied to a single wireless system. Its compatibility with a wide range of adapters means you can easily switch systems, upgrade equipment, or tackle new challenges without missing a beat.
Why it matters
MicroLock's innovative locking mechanism ensures your connections stay secure, even in high-pressure situations. When you can’t afford equipment failures, MicroLock is your silent partner in delivering excellence.
How it delivers reliability
MicroLock is built to endure it all – from a bustling live event, a remote film set or the daily grind of studio work With materials chosen for their resilience and a design made for heavy use, MicroLock is engineered to last, so you can focus on your craft - not your gear.
Made to last
MicroLock’s compact design makes it a perfect fit for situations where space is tight, or equipment needs to stay discreet. Its well thought out design means it stays out of the way, so you can focus on the bigger picture - your performance, your art, your story.
Who will love it?
You connect MicroLock in the same way as if it were a MicroDot. The only difference is that you do not need to screw it all the way in – the connection is secure, and the connector is considered assembled as soon as you hear the clicking sound or feel the tactile feedback. The clicking sound is produced by the locking teeth being pressed together by the spring, ensuring that the connector does not loosen unintentionally until you actively unscrew it. When you need to disconnect MicroLock, you pull the sleeve back slightly (0.5 mm) to compress the spring that locks the teeth, releasing the lock, and then unscrew the connection as you normally would with a MicroDot.
Compatability
MicroLock is fully backwards compatible with the MicroDot connector. This means that MicroLock parts can be assembled with MicroDot parts and function as if they were of MicroDot type.
Please note that the locking function is only available if both the male and female parts are MicroLock.
What’s the difference?
The primary difference between MicroLock and MicroDot is the locking mechanism, which adds an extra layer of security and protects the connection from any accidental disconnection during use.
MicroLock is slightly larger in diameter than MicroDot (Ø 6.6 mm / 0.26 in vs Ø 5.6 mm/ 0.22 in). In addition, the insulator color inside the connector has been changed from red in MicroDot to DPA green in MicroLock to ensure quick recognition.
