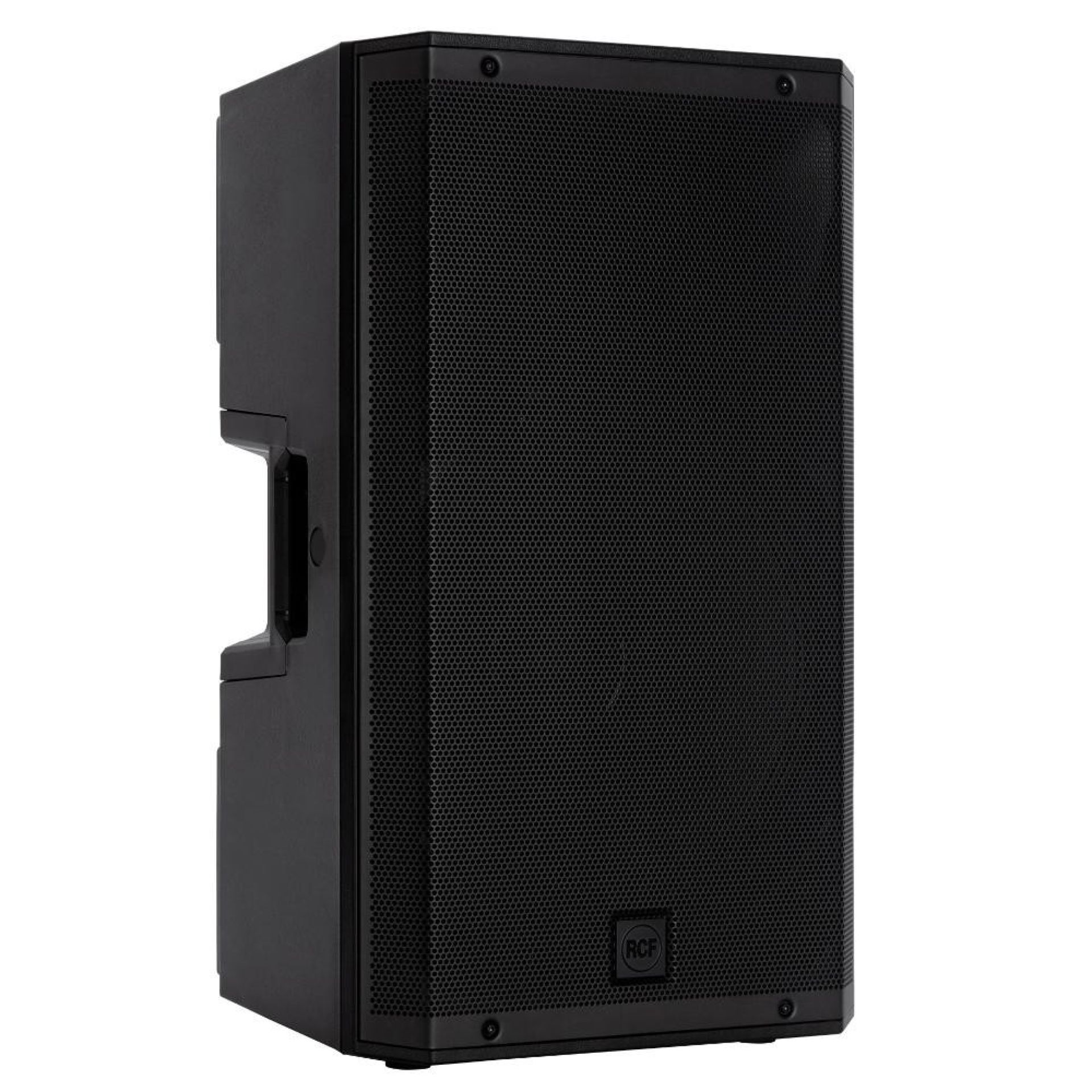

RCF COMPACT A 15 Speaker

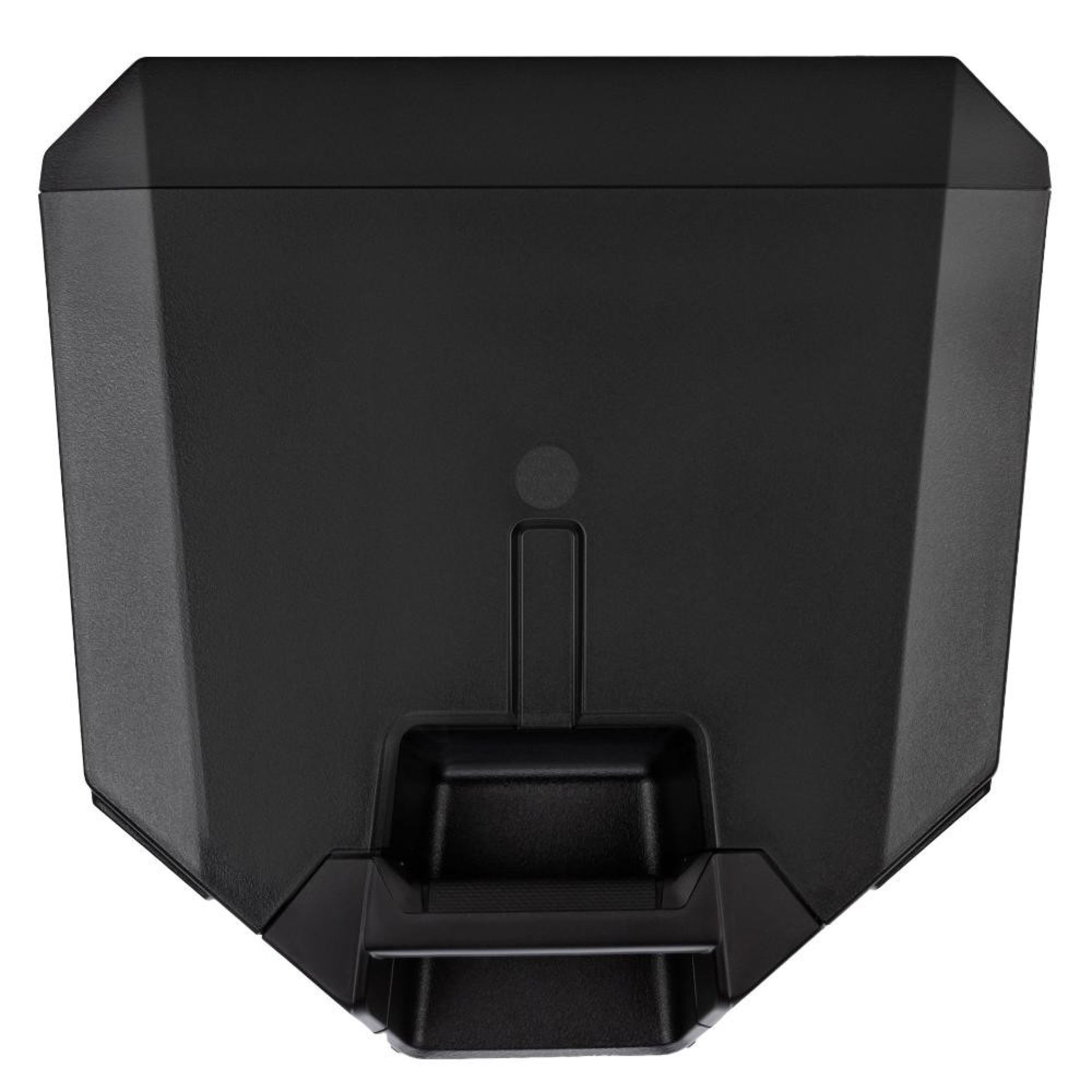

RCF COMPACT A 15 Speaker - TOP

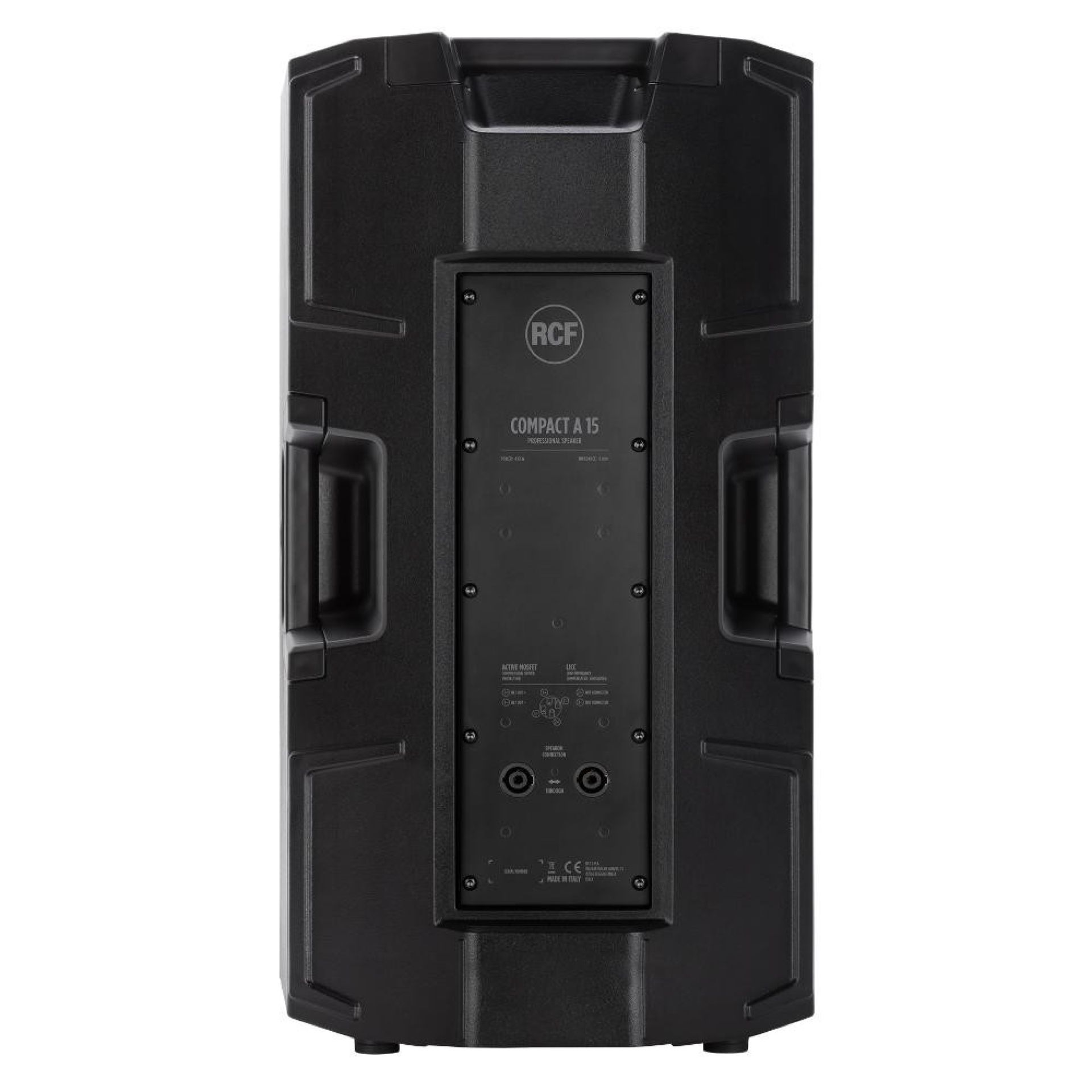

RCF COMPACT A 15 Speaker - REAR

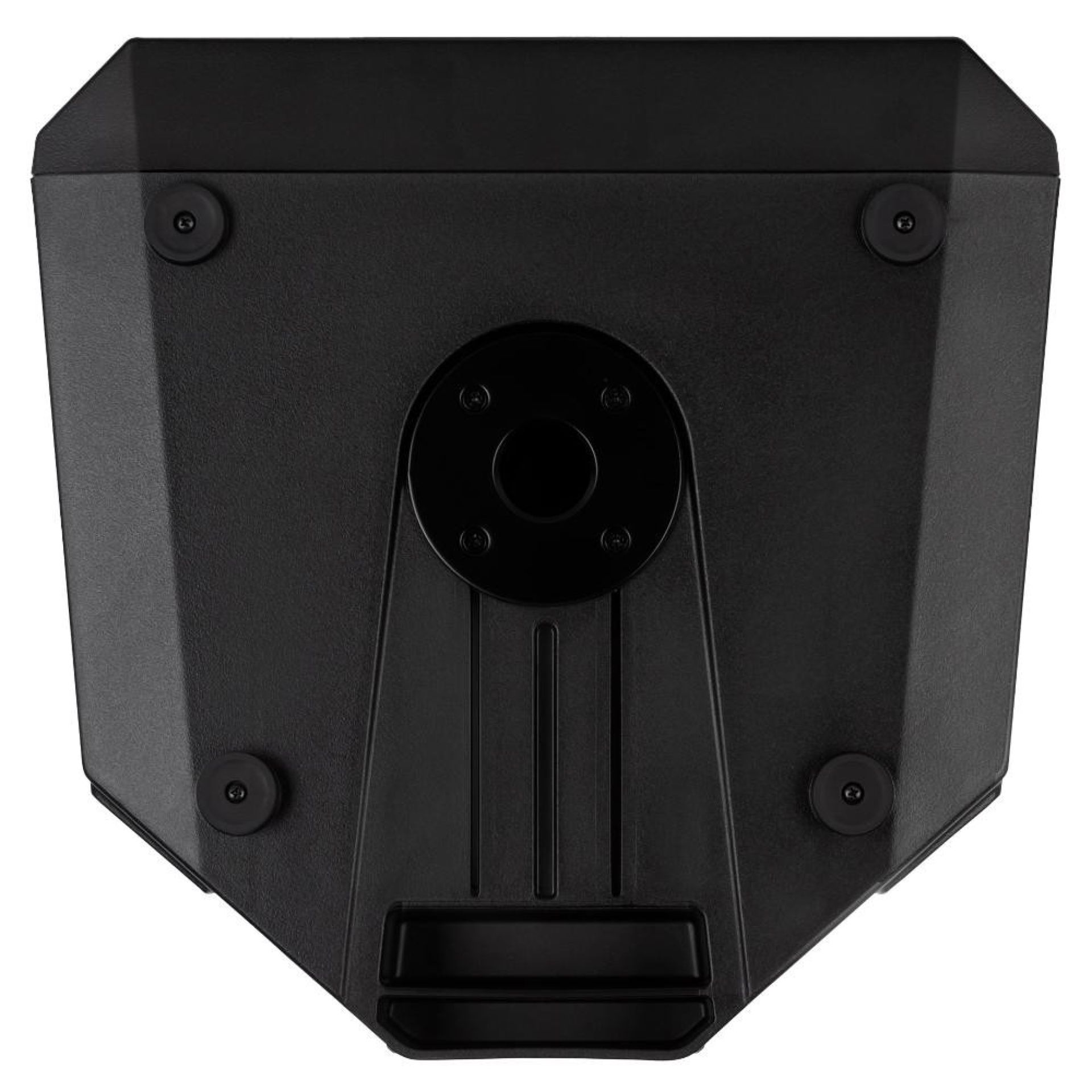

RCF COMPACT A 15 Speaker - Bottom
RCF COMPACT A 15 Speaker
RCF COMPACT A 15 Speaker - TOP
RCF COMPACT A 15 Speaker - REAR
RCF COMPACT A 15 Speaker - Bottom

RCF COMPACT A 15 Speaker 15" + 1.75" v.c, 450w AES

£ 435.00

Ex-VAT

2 Available

Condition:

  • Brand New
  • Fully Boxed
  • 12 Month Warranty

Shipping is to UK only. Export customers, please call for more info.

Or call us today on

+44 (0)1494 446000

RCF COMPACT A 15 Speaker 15" + 1.75" v.c, 450w AES

The RCF COMPACT A 15 is a multipurpose two-way full-range professional speaker system, suitable for a wide range of applications, such as live sound reinforcement and stage monitoring, as well as distributed sound systems for clubs or music venues.

The combination of a 1.75" compression driver, 15" woofer, and the constant-directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with high SPL and distortion-free sound. The sleek and lightweight cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points and available accessories.

  • Elegant design aesthetics and RCF signature sound quality that delivers a supreme audio experience in any application, from restaurants and retail shops to clubs, corporate spaces and venues. Available in three sizes - starting from 10-inch to 15-inch woofers with excellent acoustic performance for both background and foreground music.

  • Lightweight and powerful, RCF drivers are a true reference for high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components. The internal crossover frequency is set at a lower frequency than usual, resulting in a clear and accurate vocal reproduction with Dynamic Active Mosfet protection.

    High frequencies

    The new 1.75" compression driver voice-coil design with Polyimide-Kapton dome features a new bonding technology and reinforced ribs, making it 10 times more durable than previous designs. The redesigned phase plug increases sound clarity, enhancing transient response and improving coupling with the low-frequency transducer.

    Low frequencies

    Low-frequency transducer design gains more stability over higher currents, with less distortion, and is highly efficient in terms of heat dissipation. RCF quality control is very strict. Our woofers are tested with a 200 hours continuous signal to stress the transducer at extreme levels.

  • COMPACT A professional appearance of an is ideal for live events or installed applications. The sleek cabinet uses a special polypropylene composite material with a radically new construction concept. The grille cover is heavy-duty steel protecting both transducers and vented ports. The purpose-designed M-brace connects the four internal sides of the cabinet and amplifier, preventing any deformation for a completely inert body, with augmented acoustical damping even at maximum volume settings. It also performs as a reinforcement structure, for greater resistance to mechanical stress.

  • The advanced design of COMPACT A lies within the housing of the speaker. The new True Resistive Waveguide is the result of several refinements in both the transducers' and the vented ports' design with Finite Element Analysis, and constant measurement in RCF anechoic chambers. Thanks to our transducers, the new shape, and the placement of the ports, the speaker now acts as a single ideal source for a perfect sound image. Acoustically, the TRW waveguide mimics a resonance-free pure resistive load reducing the high-frequency distortion of a classic horn. With its asymmetrical sound shaping, the coverage angle of the waveguide provides constant directivity to the entire listening area and improved stereo panorama.

  • 450 W power handling

    Up to 130 dB Sound Pressure Level

    50-20000 Hz linear frequency response

    1.75" Compression Driver

    15" High Power Woofer

    Robust composite material cabinet

    Steel full front grille

    Optional mounting accessories

    2 x SPEAKON connectors

    Amplification: Full Range

    Nominal Impedance: 8 ohm

    Power Handling: 450 W

    Peak Power Handling:1800 W PEAK

    Protections:Dynamic Active Mosfet

    Crossover Frequencies:1200 Hz

    Recommended Amplifiers:

    KPS SERIES, QPS SERIES, IPS SERIES, DMA 504
