EMO C604 POWER DISTRIBUTION PANEL

EMO C604 POWER DISTRIBUTION PANEL

EMO C604 POWER DISTRIBUTION PANEL

EMO C604 POWER DISTRIBUTION PANEL

EMO C604 Power Distribution Panel

£ 60.00

Ex-VAT

2 Available

Condition:

Brand New

Fully Boxed

6 Month Warranty

Shipping is to UK only. Export customers, please call for more info.

Or call us today on

+44 (0)1494 446000

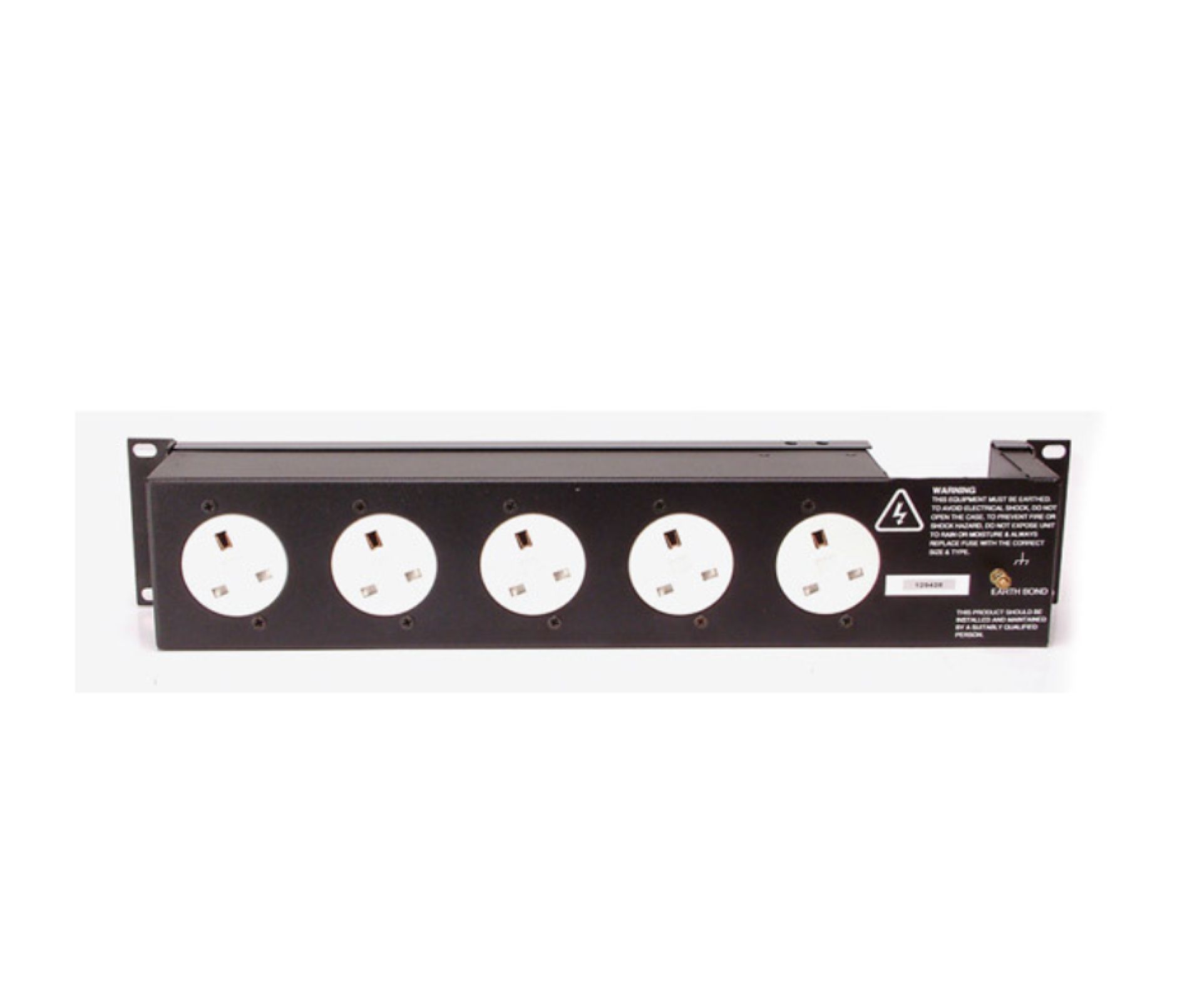

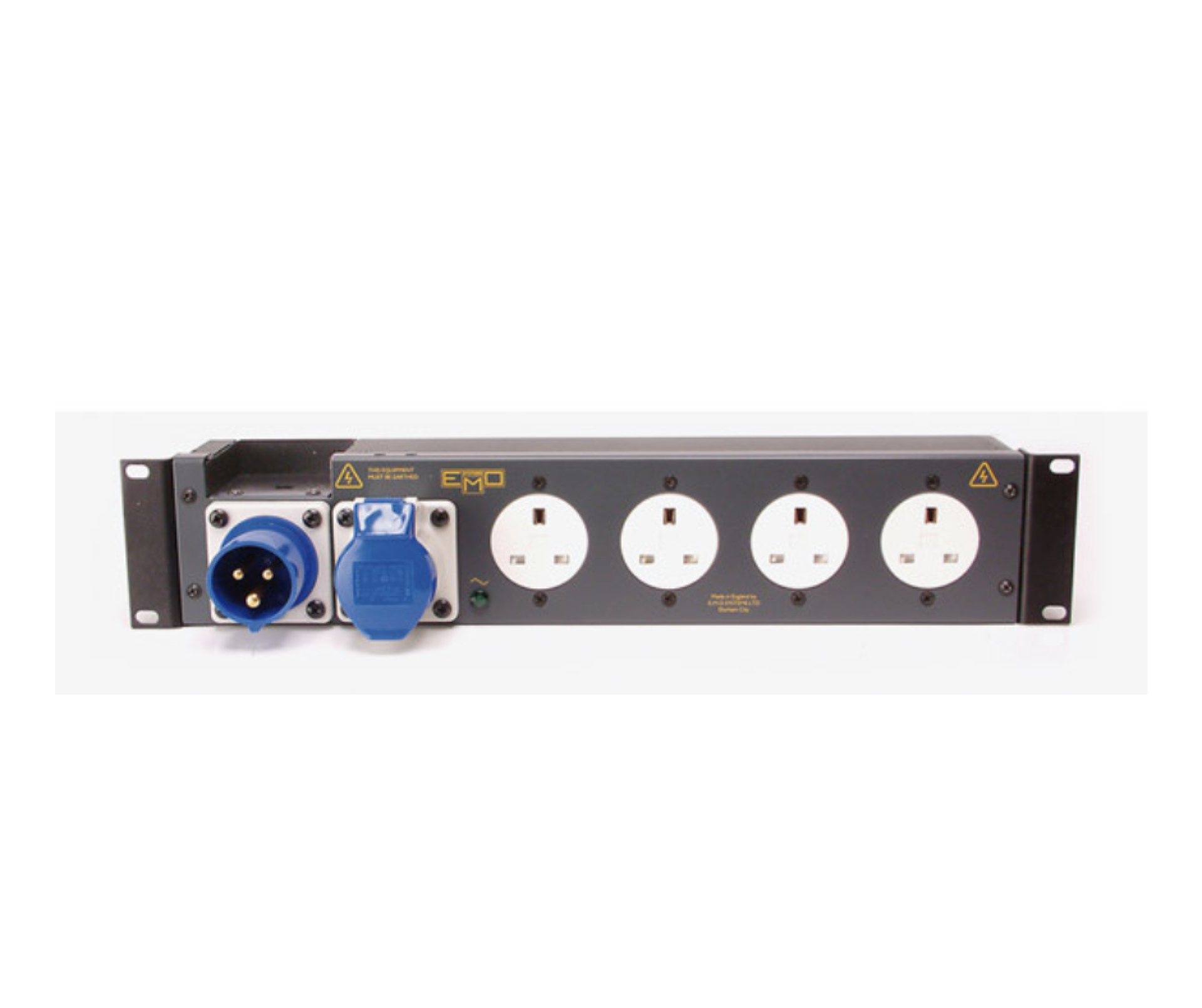

EMO C604 Power Distribution Panel

EMO C604 16A 19” RACKMOUNT MAINS DISTRIBUTION AMPLIFIER 4 F + 5 R

EMO C604 16A 19” RACKMOUNT MAINS DISTRIBUTION AMPLIFIER 4 F + 5 R (42-686)

Brand New
Fully Boxed
Inlet: IEC 16 Amp
Front Outlets: 4 x UK 13 Amp
Rear Outlets: 5 x UK 13 Amp

These rack-mounting panels are engineered specifically to provide a versatile, safe solution for powering the diverse combinations of equipment commonly mounted in mobile racks for temporary installations in live entertainment, location recording, and outside broadcast work. The internationally approved, splash-proof, connectors, used for supply cabling, are rugged enough for mobile applications, as the ubiquitous yellow 110V versions, surviving continued brutal abuse on building sites, demonstrate.

Each panel, a substantial steel enclosure, is furnished with an IEC 60309 (formerly known as IEC309, BS4343 and CeeForm CEE 17) appliance inlet for the connection of the supply, and a directly wired “loop-out” socket outlet, intended to supply further panels mounted in other enclosures. This means that several mobile racks may be powered from a single source, provided the supply has adequate current-carrying capacity and the connecting cables are adequate. Alternatively, power may be fed off to suitable distribution strips. An unusual detail of the 16-amp versions is the recess above the appliance inlet. This allows the sprung cap of the mating cable socket to fit into the rack, avoiding interference with co-racked equipment and, more unusually, providing the latching facility necessary to avoid the disengagement of the connector by untoward events such as inadvertent tripping over leads during rigging. The 32 Amp versions, featuring angled inlets, have the latch on the inlet body and are manufactured with adjustable rack-mount ears, so that the panel may be mounted recessed into the rack to avoid collision with flight case or similar lids.

All models have a neon indicator, wired to show the presence of supply input. BS1363, 13A mains outlets are reliable MK types, and are wired directly in parallel with the supply input (C660 excepted). They are arranged to avoid power cords interfering with adjacent hardware and support the use of “plug-top” power supplies. Models are also available with the Schuko socket. IEC 60320 type F, 6 Amp outlets are connected in groups of four, each with a neon indicator, via a front-panel fuse, to the supply.
