Allen & Heath Avantis Digital Mixer
Allen & Heath Avantis Digital Mixer
Allen & Heath Avantis Digital Mixer
Allen & Heath Avantis Digital Mixer

Allen & Heath Avantis Digital Mixer

£ 7,179.00

Ex-VAT

3 Available

Condition:

  • Brand New
  • Fully Boxed
  • 12 Month Warranty

Shipping is to UK only. Export customers, please call for more info.

Or call us today on

+44 (0)1494 446000

Allen & Heath Avantis Digital Mixer

Avantis is a 64-channel / 42 configurable bus mixer platform, expandable to 96-channel / 56 configurable bus, featuring our 96kHz XCVI FPGA engine with class-leading 0.7ms latency plus add-on processing and effects from their flagship dLive mixing system.

Brand New, Fully Boxed Stock. Clearance Prices. (Note: This is NOT the Ultra version)

Avantis can be controlled using the Avantis Director software, MixPad app, Custom Control app or from our range of remote controllers and GPIO interfaces, with up to 48 IP remote controllers over a standard TCP/IP network.

Applications include control of IEM mixes on stage, extra fader banks at FOH, and local control in breakout rooms.

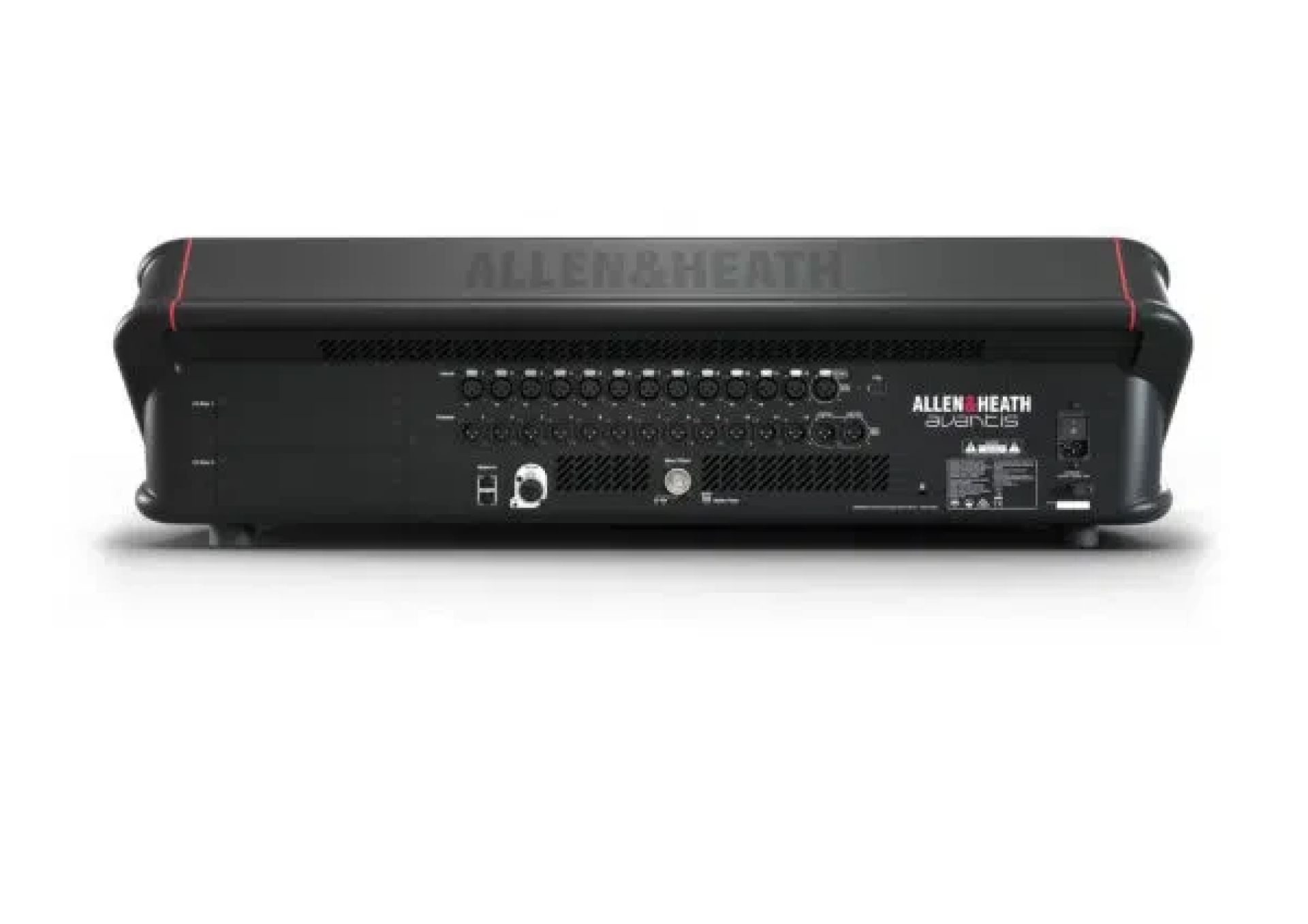

For local I/O, Avantis is well equipped with XLR analogue inputs, XLR analogue outputs, plus AES (Stereo In, Stereo Out).

Two additional I/O Ports allow Avantis to benefit from the full range of current dLive option cards, including Dante (64×64 and 128×128), Waves, gigaACE, MADI and more, expanding the scope for system integration, FoH / monitor splits and multitrack recording.

Whether you’re an owner/operator looking to build a compact system, or a rental company with existing Allen & Heath stock, the SLink connection on Avantis allows true flexibility by connecting to the entire range of Allen & Heath audio expander hardware.

Add a Dante card to your system and you’ve got even more options, with our dedicated Dante expanders, DT168 and DT164-W.

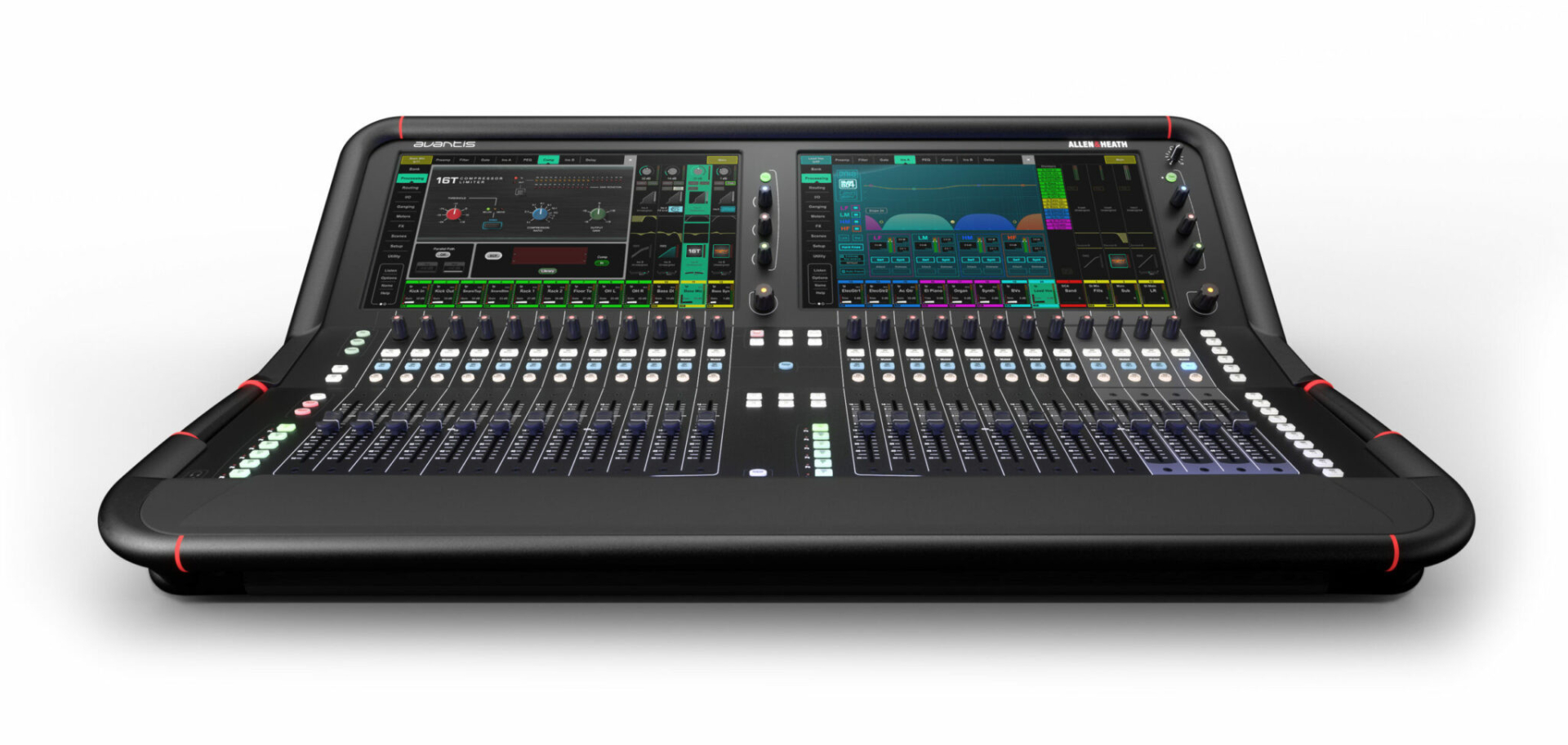

With 15.6″ Full HD touchscreens at the heart of the experience, Continuity UI allows you to see and instantly interact with more of what matters, enabling a seamless connection between the physical controls and the screen.

The faders react on touch to immediately highlight the active channels for instant visual feedback.

The channel rotaries let you work gains or pans, then at the touch of a button, dynamically fold the display to show EQ or compressor parameters across the whole bank.

Each screen also features a Soft Rotary tab on the right-hand side, giving you split-second access to key freely-assignable parameters like aux sends, EQ, compressor and FX on the currently selected or specific channel.

The whole system is set up to dynamically surface the information you need at any moment and put control right at your fingertips.

  • Hardware:

    • Two 15.6” Full HD touchscreens

    • 24 assignable SoftKeys

    • 24 faders, 6 layers

    • 12 Analog/1 stereo AES Inputs

    • 12 Analog/2 stereo AES Outputs

    • 2 I/O Ports (128×128)

    Mix Engine:

    • 64 Input Channels

    • 42 Busses

    • 12 RackExtra FX
